Visual cortex and form constants

Bressloff V1 Form Constants

Use this page to compare animated V1 planforms with classic form-constant shapes: tunnels, spirals, cobwebs, lattices, and honeycombs. The Bressloff visual-cortex model gives a concrete way to ask how simple activity patterns in primary visual cortex could appear as tunnels, spirals, cobwebs, lattices, and honeycombs after the retino-cortical map. The useful test is modest and visual: choose a cortical planform, transform it through the visual-field map, and see whether the named Kluver-like form appears (Bressloff et al., 2002).

Public status

Status and rights boundary

This page uses generated model images unless a caption explicitly says otherwise. Source-paper figures are named as calibration targets and references, not reproduced assets. No source-paper scans or crops are hosted here unless a license or permission statement appears in the caption. Full PDFs, page images, and source-figure crops are not published from this page.

Rule et al. 2011 figures may be reused from PLOS Computational Biology under Creative Commons Attribution terms with attribution and change notes. Bressloff/Royal Society, Bressloff/Neural Computation, Ermentrout and Cowan/Springer, and IOP review figures require separate license verification or permission before direct reproduction (PLOS license policy; Royal Society permissions; MIT Press permissions; Springer Nature permissions; IOP permissions FAQ).

The animations test whether V1 planforms can produce recognizable geometric forms after visual-field mapping. They do not predict individual hallucinations, psychedelic experience, clinical outcomes, or safe flicker exposure.

How to read this page

  • Start with the generated animations.
  • Read the claim boundary before treating a visual match as evidence.
  • Use the named presets to compare generated forms with source-paper targets.
  • Open the deep dive for equations, calibration notes, and the Rule flicker model.

Animation safety boundary

These animations are explanatory model loops, not flicker stimuli or safety-cleared visual stimulation protocols.

Limits

The useful claim is narrow

If V1 is treated as a two-dimensional cortical sheet with orientation structure, then symmetry-breaking activity patterns can become recognizable geometric visual forms after projection into retinal coordinates. That is a strong mechanistic sketch for form constants, while psychedelic imagery, visual meaning, and calibrated strobe-frequency prediction require additional models and evidence (Ermentrout and Cowan, 1979; Bressloff et al., 2002).

Flicker can induce geometric visual hallucinations, and newer work studies those reports with richer phenomenological instruments. A V1 planform model starts upstream of exact frequency claims: it first makes cortical pattern families tunable and visible. A later layer can try to connect input frequency, neural drive, participant state, and report structure (Rule et al., 2011; Hewitt et al., 2025).

Current visualization

  • Slow browser animations of the main planform families
  • Retino-cortical remapping from cortical stripes to visual-field forms
  • Orientation-contour glyphs drawn as short local line segments
  • 24 named source-target presets with source metadata and lattice-local branch readouts
  • Calibration reports for rendered targets and stability diagnostics

Current boundaries

  • Frequency prediction remains uncalibrated
  • Whole altered-state experience remains outside the model
  • Clinical and therapeutic claims remain outside the scope
  • Participant reconstruction data remains a separate evidence source

Animated figure presets

Planforms through the retino-cortical map

These animations are exported from the Rust V1 planform renderer, then served as static WebP loops. They drift slowly to reveal structure rather than produce flicker. If reduced motion is enabled, the browser receives static PNG poster frames instead.

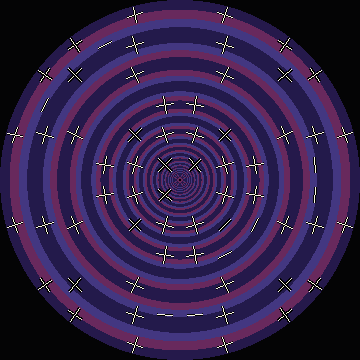

Bressloff V1 rings and tunnel planform rendered through the retino-cortical map
Rings / tunnel Cortical stripes across log-radius become concentric visual-field structure.

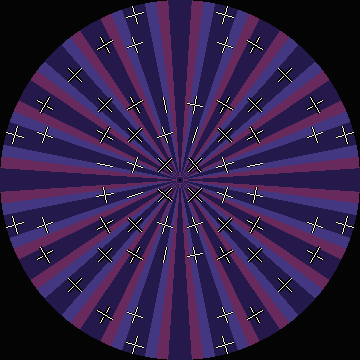

Bressloff V1 rays and funnel planform rendered through the retino-cortical map
Rays / funnel Stripes along cortical angle become radial spokes and funnel-like geometry.

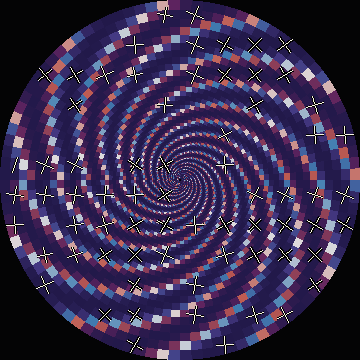

Bressloff V1 spiral planform rendered through the retino-cortical map
Spiral A tilted cortical wave combines log-radius and polar angle.

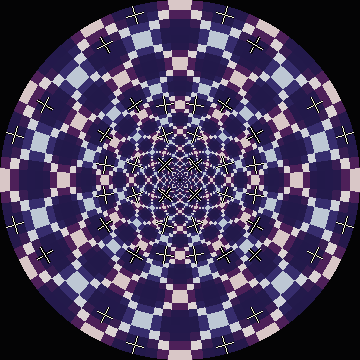

Bressloff V1 cobweb square planform rendered through the retino-cortical map
Cobweb / square Two near-orthogonal cortical modes create nested rings crossed by rays.

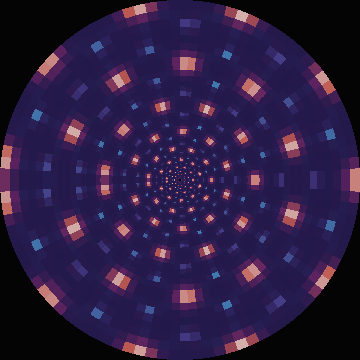

Bressloff V1 hexagonal honeycomb planform rendered through the retino-cortical map
Hexagonal / honeycomb Three wavevectors form a hexagonal branch before the retino-cortical transform.

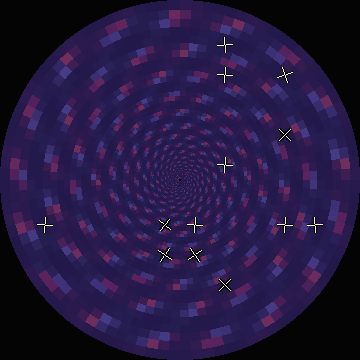

Bressloff V1 rhombic planform rendered through the retino-cortical map
Rhombic Two oblique modes show why branch selection matters for the final visible shape.

Source-target registry

Generated presets against named paper targets

Each row links the source figure reference and places the current generated implementation beside the formula path used in the Rust renderer. The hosted images are generated assets from this repository; source-paper scans remain references until reuse permission or an open license is clear. For a non-journal visual explainer of this model lineage, see CountYourCulture's Bressloff notebook. Rights for original journal figures remain separate; this page uses generated images unless permission or an open license is stated.

The interactive implementation now carries 24 named Bressloff presets: Figure 16/17 stability examples, Figure 29/30 non-contoured single-map planforms, Figure 31-36 double-map contour planforms including roll subpanels, and 2002 Figure 5-7 convenience targets (Bressloff et al., 2001; Bressloff et al., 2002; implementation repository). The generated report separates rendered-target checks from amplitude-branch diagnostics, so a square/cobweb image can be marked as visually rendered while its current branch selector still prefers the roll family.

Figure 31 source target

Square/cobweb even planform in the detailed Bressloff et al. Royal Society treatment.

Source figure reference Open visual comparison

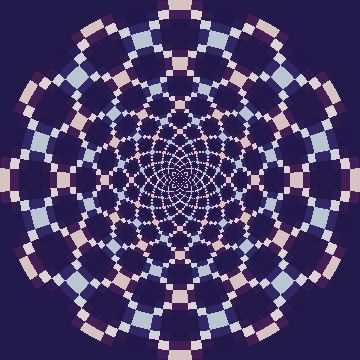

Generated Figure 31 square even cobweb preset through the retino-cortical map
Generated fig31_square_even preset

Implementation note

Two orthogonal cortical modes are rendered through the double map. The target planform renders as cobweb/square; the same-lattice branch readout currently selects the roll/spiral branch.

Figure 32 source target

Odd square/cobweb variant for checking parity-dependent contour structure.

Source figure reference Open visual comparison

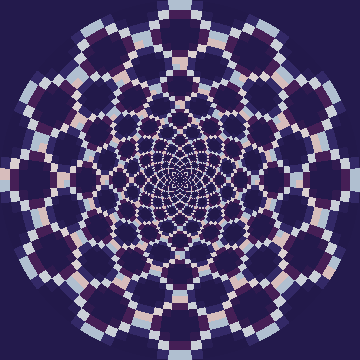

Generated Figure 32 square odd cobweb preset through the retino-cortical map
Generated fig32_square_odd preset

Implementation note

The odd branch uses the same square lattice target with the odd orientation eigenfunction. The rendered family matches the target; the local stability readout again falls to roll/spiral.

Figure 33 source target

Rhombic even planform, used here as the cleanest current same-family calibration case.

Source figure reference Open visual comparison

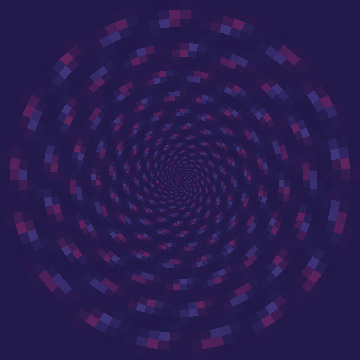

Generated Figure 33 rhombic even preset through the retino-cortical map
Generated fig33_rhombic_even preset

Implementation note

The rendered planform, family check, and same-lattice branch selector currently agree. This is the baseline for the later figure-by-figure geometry calibration.

Figure 35 source target

Hexagonal even phase variant. This row is the current phase-selection test for the quadratic amplitude term.

Source figure reference Open visual comparison

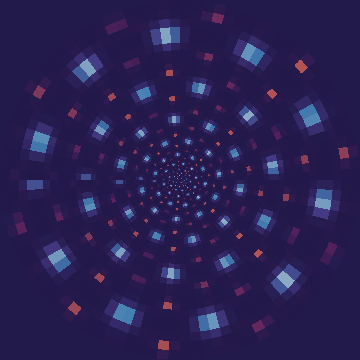

Generated Figure 35 hex pi preset through the retino-cortical map
Generated fig35_hex_even preset

Implementation note

The renderer draws the requested hex-pi variant. The same-lattice branch selector chooses the honeycomb phase partner under the current quadratic-term sign convention.

Interactive implementation

Model controls behind the animations

The animations come from a Rust V1 planform renderer with kernel parameters, an even/odd stability scan, perturbative orientation eigenfunctions, branch selection, and a retino-cortical viewer. Those controls make the model tunable enough to compare against the paper figures instead of treating each image as a fixed illustration.

The MIT-licensed implementation is MIT licensed and credits the public karacsm/V1-sim notebook lineage. Brain Candy is relevant only as adjacent state-shift context; the implementation itself focuses on Bressloff's model equations. The current calibration layer exposes named source-target presets, orientation-channel exports, and side-by-side checks between target planforms, contour mode, same-lattice branch selection, stability diagnostics, and generated output.

Code and related context

Current model outputs

  • Kernel tuning for local and lateral interactions
  • Linear critical-wavenumber scan
  • Amplitude-equation branch readout
  • Orientation-contour overlays
  • Source-target catalog and v4 JSON calibration report

Implementation roadmap

The remaining work is calibration, not source collection

The Bressloff papers now map to a public source-target registry and calibration report. The next fidelity layer is narrower: measure how well generated images match the source figures, fit phase and threshold conventions, digitize stability curves, and resolve the odd-hexagonal branch cases where higher-order terms matter (future implementation plan).

That distinction matters for later flicker work. Rule, Stoffregen, and Ermentrout's flicker-induced phosphene model belongs beside this V1 planform lab, but it should enter as a separate scalar excitatory/inhibitory model family rather than being folded into Bressloff's orientation-hypercolumn presets.

Calibration layers

  • Figure geometry and threshold matching
  • Phase-specific square, honeycomb, hex-pi, and triangular variants
  • Stability and bifurcation curve digitization
  • Higher-order odd-hexagonal branch selection

Model-family bridge

  • Bressloff remains the orientation-hypercolumn track
  • Rule enters as a flicker-driven scalar E/I track
  • Both can share visual-field rendering where the math warrants it

After Rule

From spontaneous forms to driven fields

Later neural-field work extends the classic form-constant lineage from spontaneous planforms and diffuse flicker toward driven systems. Nicks, Cocks, Avitabile, Johnston, and Coombes model Billock-Tsou-style orthogonal responses using spatial forcing and a 2:1 resonance (Nicks et al., 2021). Tamekue, Prandi, and Chitour treat MacKay-style effects as localized input-output problems in an Amari neural field (Tamekue et al., 2024). Bolelli and Prandi add time-periodic localized inputs and relate model afterimage contour width to flicker frequency and inhibition strength (Bolelli and Prandi, 2025).

These papers do not make the simulator a perception predictor. They show how the model family has moved from spontaneous forms toward stimulus-driven fields.

Public-page use

  • Nicks et al.: generated spatial-forcing and orthogonal-response diagnostics.
  • Tamekue et al.: generated localized MacKay input diagnostics.
  • Bolelli and Prandi: generated localized time-periodic input diagnostics.

Claim boundary

Frequency and input parameters are model variables, not safe exposure recommendations or promises about what an individual viewer will see.

The deep dive carries the full taxonomy, rights ledger, and extension notes.

Computational provenance

The source papers name different author-side workflows: XPPAUT/AUTO, MATLAB, Julia, Mathematica, PETSc/Trilinos, and BifurcationKit appear in different parts of the lineage. Mesmer Prism records that methods context while keeping its own outputs generated and explicitly labeled.

The methods note separates named source software from the Rust diagnostics shown here.

Driven diagnostics

Driven reports now expose source-target diagnostics

The public simulator now exposes source-safe generated reports for localized MacKay input, localized time-periodic input, and Nicks-style orthogonal response. Bolelli now includes an accepted source-side pole-width convention, generated decay-width fit diagnostics, and Figure 5 source-equation curve samples without source-panel calibration, while Nicks includes Appendix-B kernel-derived coefficient diagnostics, source-equation Figure 8 boundary residual checks, and a source-derived acceptance policy. These remain diagnostic outputs and compact numeric summaries, not copied paper figures and not calibrated perceptual predictions.

... registered driven examples, separated from Bressloff and Rule.
... registry entries with runnable generated diagnostics.
... entries with diagnostic coverage but missing source-calibrated targets.
... public JSON report families loaded by this page.
MacKay localized input Generated fixed-point diagnostics loading...
Bolelli localized periodic input Generated period-lock diagnostics loading... Representative frequency loading...
Nicks orthogonal response Generated amplitude-equation diagnostics loading... Representative detuning loading...
Claim level
diagnostic/source-target; not calibrated
Formats
loading report formats...
Source
loading generated report JSON...

Reading the animations

The pattern is the argument

The visual-field image is downstream

A stripe in cortical coordinates can become a ring, a ray, or a spiral in visual-field coordinates because the V1 map uses log-polar structure rather than a rectangular image copy. Near the center of gaze, retinal eccentricity and polar angle are expanded into a log-polar cortical sheet. The same wave family can therefore look qualitatively different after remapping.

Contour glyphs are orientation hypotheses

The short line overlays mark local dominant orientation channels: orientation hypotheses rather than separate moving objects. They are a compact way to show how an orientation-resolved model can turn scalar activity into contoured hallucination sketches, which is central to the later Bressloff account.

The honest use is exploratory first

A simulator is useful here when it lets the model fail in public. If the equations cannot generate the named family under any plausible parameter setting, that is informative. If a small parameter shift moves the model from cobweb to rhombic to honeycomb, that is also informative. The point is to put the mathematical description close enough to the image that the comparison becomes checkable.
