PolarH10 Developer Reference

Synthetic Showcase

Use this section when you need publication-grade example inputs, intermediate traces, and downloadable figures that show how raw RR or breathing data become coherence, HRV, and entropy values.

SyntheticBio is the deterministic source of the showcase bundle published into this repo. The exported data and rendered figures are committed under docs/data/synthetic-showcase and docs/assets/synthetic-showcase so GitHub Pages can publish them without a sibling checkout or CI-time generation step. The intent is not just internal documentation. This bundle is written so a research group can cite the scenario preset, inspect the intermediate traces, and reuse the rendered figures or source files in supplementary material.

Open manifest Download overview SVG Download figure pack PDF

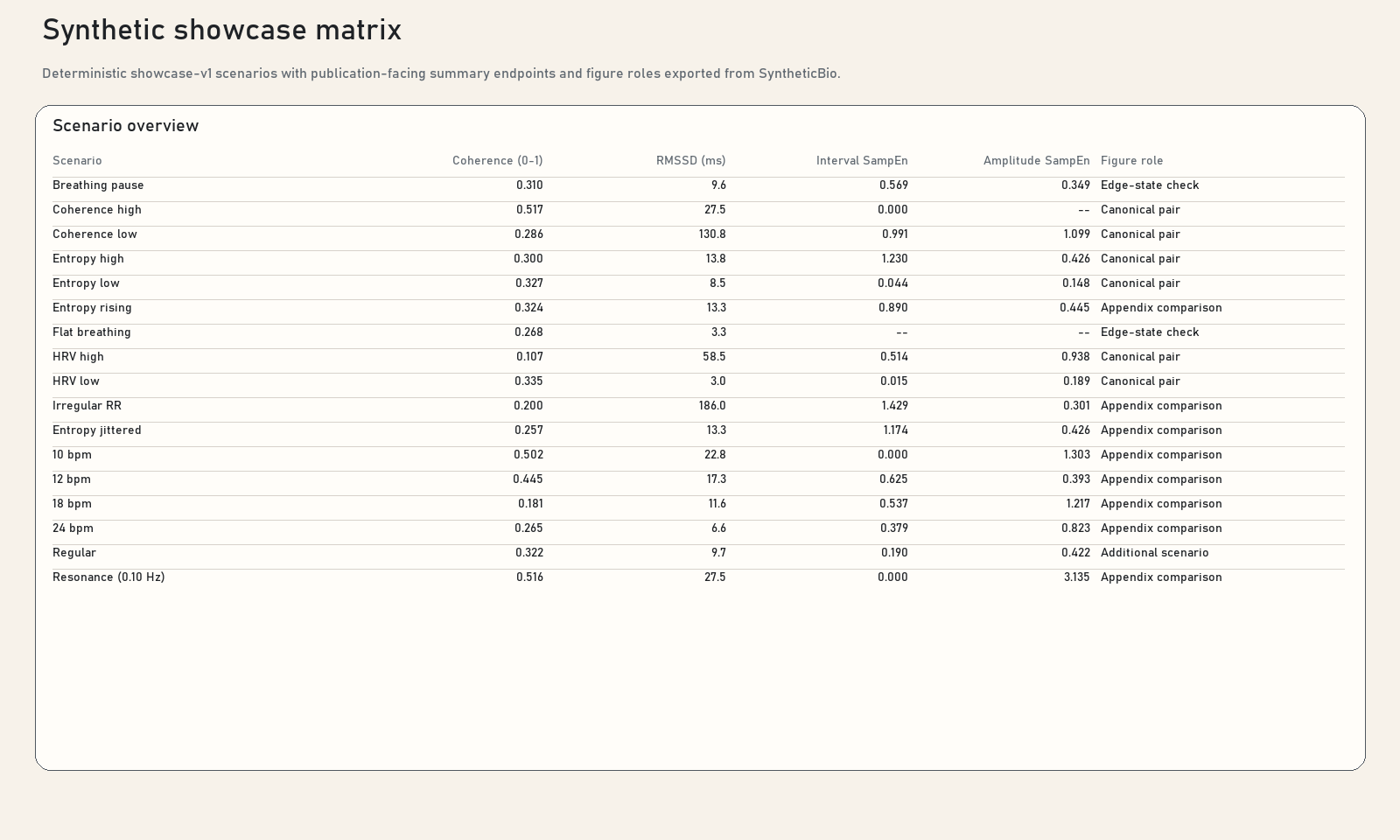

Synthetic showcase matrix

Publication Framing

  • The bundle is versioned by preset id. The current published release is showcase-v1.
  • Each figure is backed by committed source data so a reviewer can move from the published panel to analysis.json, ground_truth.json, and the raw exported traces without rerunning the generator.
  • The metric-specific pages below include publication-style framing and manuscript-ready caption language for coherence, short-term HRV, and breathing dynamics.

Bundle Contract

  • Every scenario folder contains scenario.json, ground_truth.json, analysis.json, hr_rr.csv, ecg.csv, and session.json.
  • showcase-manifest.json records the preset id, duration, generator version, tracker settings, scenario inventory, and generated assets.
  • analysis.json exposes the intermediate traces needed for publication figures, while ground_truth.json remains the human-readable summary export.

Computational Path

  1. Raw synthetic input is exported as hr_rr.csv, ecg.csv, and the breathing telemetry captured in ground_truth.json.
  2. Intermediate derivation steps are exported in analysis.json, including RR windows, spectra, extrema, and derived breath series.
  3. Final downstream telemetry is published in analysis.json and summarized in ground_truth.json.

Live Demo Device Set

  • Polar H10 Demo Coherence High -> coherence_high
  • Polar H10 Demo Coherence Low -> coherence_low
  • Polar H10 Demo HRV High -> hrv_high
  • Polar H10 Demo HRV Low -> hrv_low
  • Polar H10 Demo Entropy High -> entropy_high
  • Polar H10 Demo Entropy Low -> entropy_low
